Description
TYPICAL APPLICATIONS

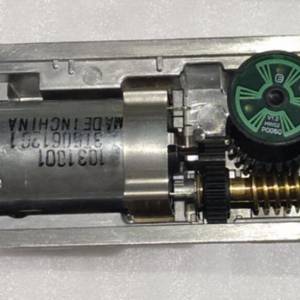

SACER SA1143-099-01 Smart Electronic Actuator Gearbox is typically used for Garrett VNT turbo (applications such as passenger car / LDV duty diesel engines to help provide optimum performance and enable compliance with current and future exhaust emissions standards.
Order NR.
SA1143-099-01
Type
PWM / Digital
Reference Number
6NW 010 099-01
Make/Model
BMW 7 Series,X5,X6 Nissan Navara/Pathfinder/Murano/Atlas/Castar
Parts Number
59001107185
Features
Motor torque output:Up to 60Ncm (25°C)
Resolution:0.26°
Response time:<1.2ms
Rotation travel:up to 120°
Operating temperature range:-40°C to 125°C
Communication:PWM
Power input:10.5-16V
Quality control
Full function OQC test and confirm for every unit.
2 years Full European Warranty
Finish full function test, temperature test, endurance test, drop test, vibration test, salt spray test, destructive test, EMC test.
