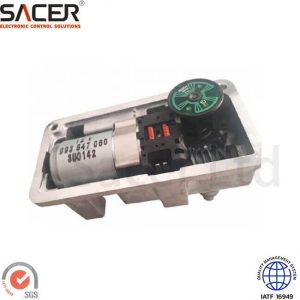

SA1130-G052P-C6 Turbo Actuator Gearbox
The turbo actuator is part from a complete VGT turbo assembly, made by Garrett. The original turbo actuator has a short lifespan, and therefore an extreme high failure rate. Often this turbo actuator cannot be purchased separately, and if the actuator breaks, a complete new turbo with actuator assembly needs to be bought. The high failure rate, mostly comes from wear in the two plastic gears, causing to much friction, and results in breakage from the DC motor. As one off the gears that causes this problem is laser welded, inside the gearbox, it is not possible to exchange only both plastic gears and DC motor. Therefore Sacer offers a reman solution in the shape off a complete new actuator gearbox. Brand new with self-developed patent & easily plug and play.
Turbo Part Number:
753546-5023S
753546-9023S
753546-5014S
753546-0023
753546-0014
GARRETT NO. :
767649
Hella NO. :
6NW009550
Control mothed :
A Version(Analogue)
For Car Make:
LandRover
For Car Model:
Land-Rover 2.2
Benefits:
1.independent software design
2.including independent PCBA design
3.longlift Johnson DC motor
4.Transmission structure with special materials, good wear resistance
5.the whole unit passed high speed aging life test (including durability, high and low temperature, vibration, EMC, etc.)
6.Angle can be customized by programming
Warranty:
2 years warranty. 100% of qualified testing and checking before shipping.
