How to identify the correct Actuator for Holset replacement at order ?

Step 1: provide the image from turbocharge label and complete actuator

Step 2: Repeat the Actuator No and HW No.

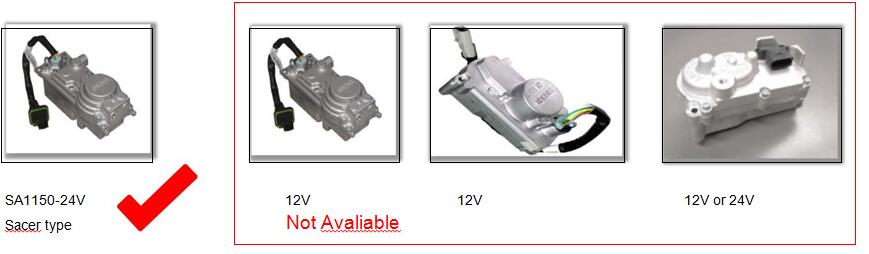

Which Holset Actuator Sacer could supply for now?

How many types of OE Holset Actuator ?

4 types

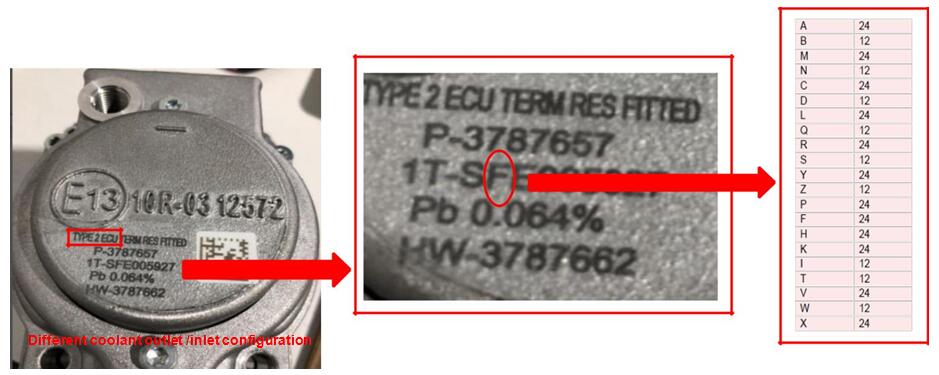

How to identify 12V or 24V from Holset Actuator ?

1T-S(?) — Identify 12V/24V

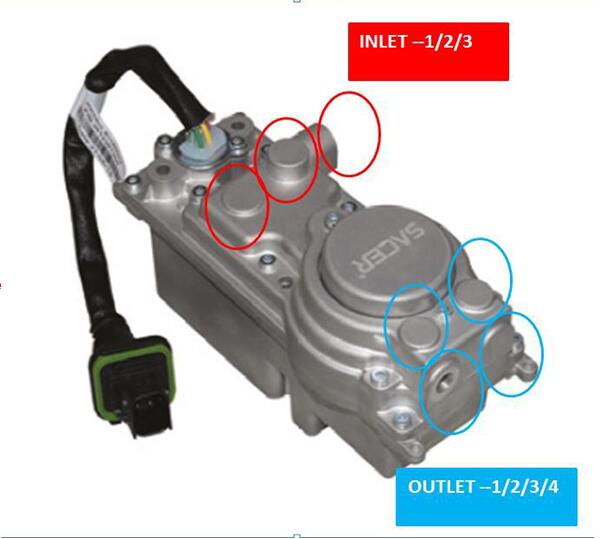

Different coolant outlet /inlet configuration

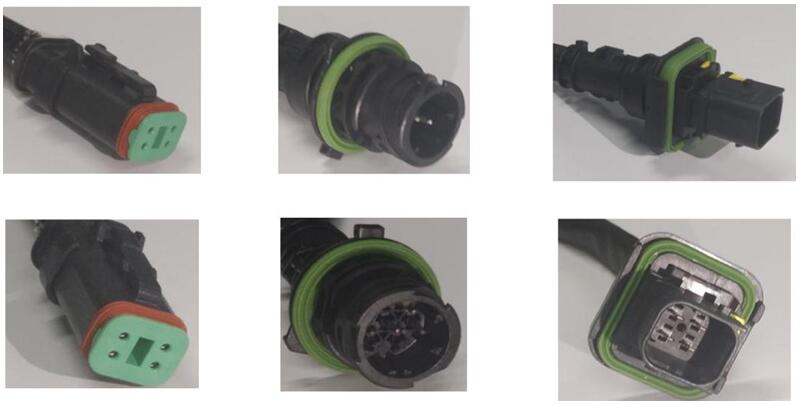

Different Connector and cable length

In All 7 different tpyes of connectors, Sacer could provide 3 types for now All type connectors have 4 pins .

The length of cable can also different

What’s necessary equipment to repair/replace the Holset Actuator replacement ?

The offical OE Calibration tools from engine manufacturer, eg: E-Tool from Commins

If you have any question, please contact Sacer team at [email protected]
